Description
- High Efficiency- The 750W brushless toothed compact high-speed series hub motors are up to 82%+ efficiency and can reach a top riding speed of 26.72 mph for 24" bike frames and 12", 16", 18", 20", 24", 26", 700c and 28" aluminium wheels.
- Precise Speed Control- The e-bike conversion kit is built-in with 3 Hall sensors and controller for precise speed control, torque up to 35N.m, and can climb up to 12 slopes, so you can use it on more terrains in your daily life and travel more freely.
- Excellent Weight Burdening Capacity- The bike motor kit's high-quality materials and well-machined wheels can hold up to 220.46 lbs, supporting most common adult and bicycle frames without worrying about warping or collapsing.
- Easy to Operate- Simply control the speed with the thumb throttle, battery indicator for quick check of the battery level for easy charging on time, hand brake automatically shuts off the motor to save energy and prevent the motor from overheating, prolonging the life of the product. The drive system has no moving chains or gears, which prevents friction and improves safety.
- Flexible Installation- 4.92ft motor cable length and 5.91ft brake cable length allows you to easily install on a variety of two-wheeled, mountain and folding bikes.
Specification:
Material: Rubber, Aluminium, 45# Steel, Aluminium Alloy
Craftsmanship: Brushed
Colour: Silver
Style: Modern
Assembly Required: Yes
Mounting Location: Front
Motor Type: Brushless Toothed Small High Speed Series Hub Motor
Hand Brake Type: Disc Brake/V-Brake
Voltage: 36V
Power: 750W
Efficiency: 82
Controller: 136V 750W controller
Number of Hall sensors: 3
Recommended battery capacity >12Ah
Motor shaft diameter: M14
Motor shaft length: 170 mm/6.69 in.
Motor cable length: 150cm/4.92ft
Speed: approx. 43km/26.72mile/h
Climbing Angle: 12
Rated Speed: 390PRM
Rated torque: 35N.m
Minimum fork width: 100-110 mm/3.94-4.33 in.
Optional aluminium wheel sizes: 30.48 cm/12 in, 40.64 cm/16 in, 45.72 cm/18 in, 50.8 cm/20 in, 60.96 cm/24 in, 66.04 cm/26 in, 700 cm, 71.12 cm/28 in.
Weight capacity: 100kg/220.46lbs
Adaptable slot width: 1 cm/0.39 in.
Adaptable frame size: 60.96 cm/24 in.
Brake line length: 1.8 metres/5.91 feet

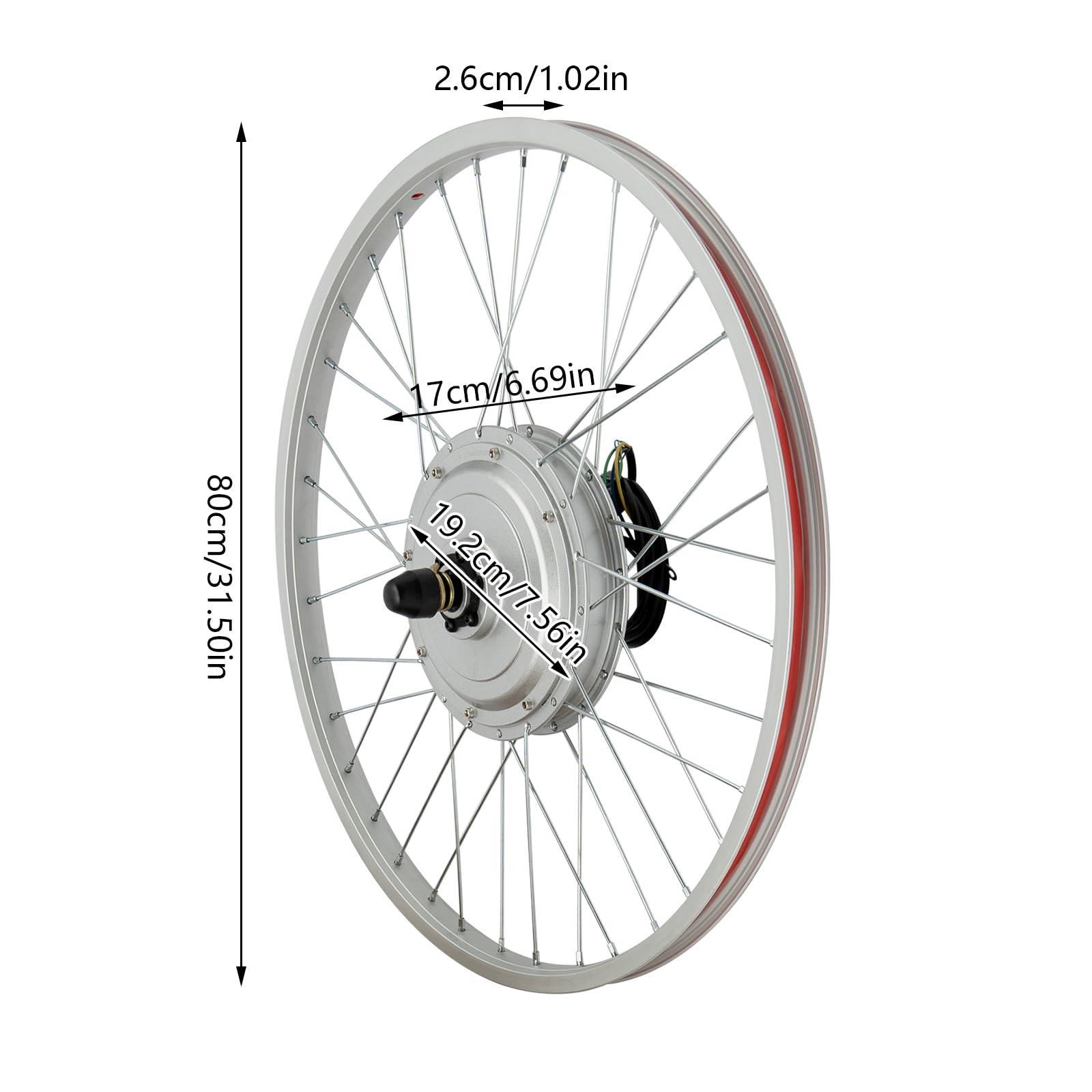

Hub width: 2.6 cm/1.02 in.
Motor Diameter: 19.2 cm/7.56 inches
Product size (LW) 5217 cm/20.476.69 inches
Package size: 555523 cm/21.6521.659.06 inches
Gross weight: 9kg/19.84lbs
Net weight: 8kg/17.64lbs

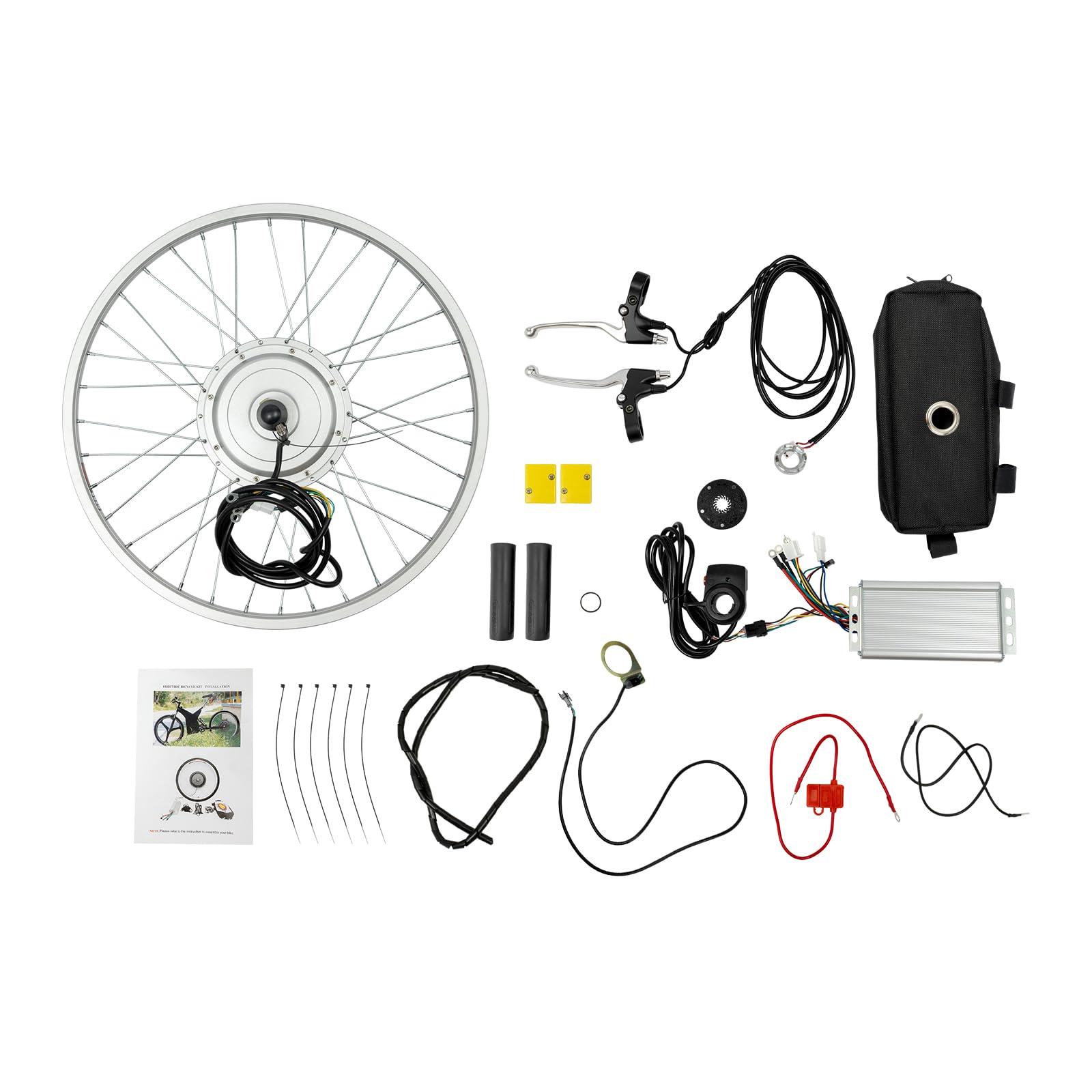

Package Content:
1 24" brushless hub motor front wheel
1 Electric controller
2 handbrake
2 Handle
2 junction box
1 spoke key
1 controller bag
1 Thumb Throttle
1 Strap
1 set Cable Wrap/Cable Tie
1 English manual
