Description

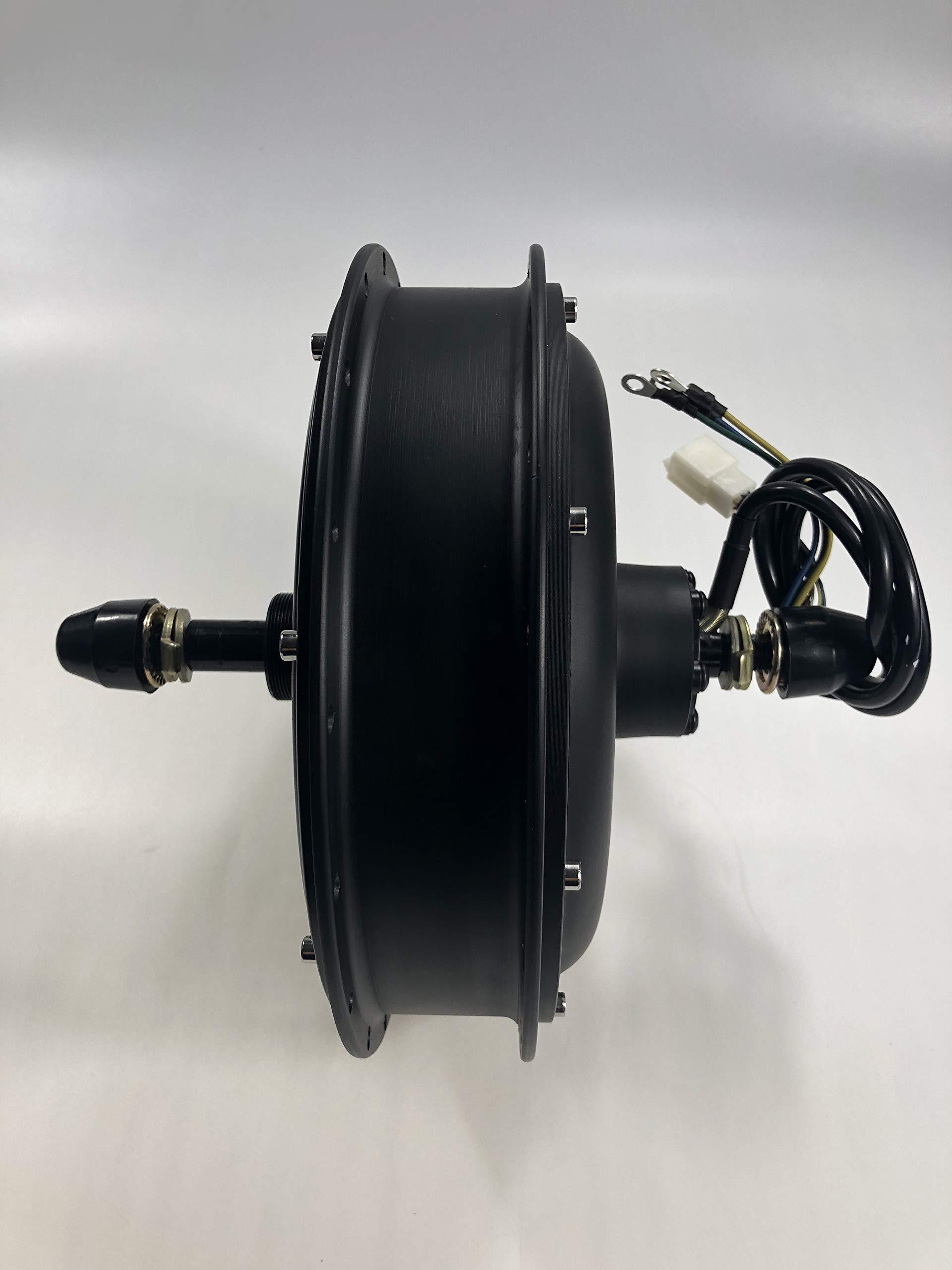

- Brushless gearless Fat 1500W Hub Motor
- Rear fork distance is 170-175mm
- Speed : 60-65 km/h
- Support Regenerative Function (KT Controller and KT LCD3 Display)
Note : This motor wheel is for electric fat bike . its drop out is 175mm .
Note: we provide different color rim ( red , black ) , please tell me which one do you need !
Electric fat bike motor specifications :

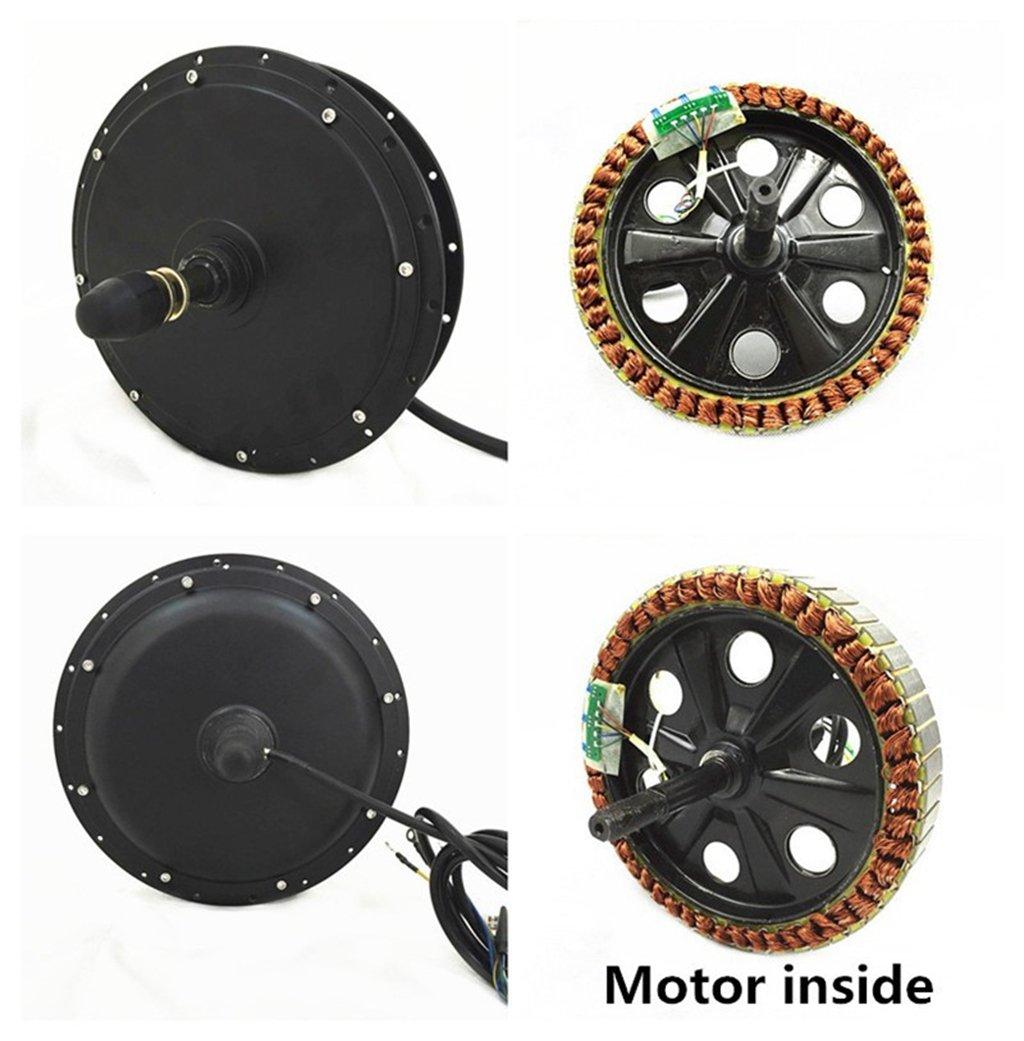

Motor Type: Brushless Non-gear Hub Motor
Voltage: 48V
Design: Brushless
Wattage: > 1500w
Power: 1500w
Speed : 60-65 km/h
Wheel size : 26" x 4.0
Drop out : 175mm
Out wire: 2.5mm2 wire will bear max 45amp current accoriding to the Temperature
Net weight : 7kgs
Efficiency: 85%
Magnet: 35mm Height new magnet .
loading: 120kg
Torque : 40-50N.M max

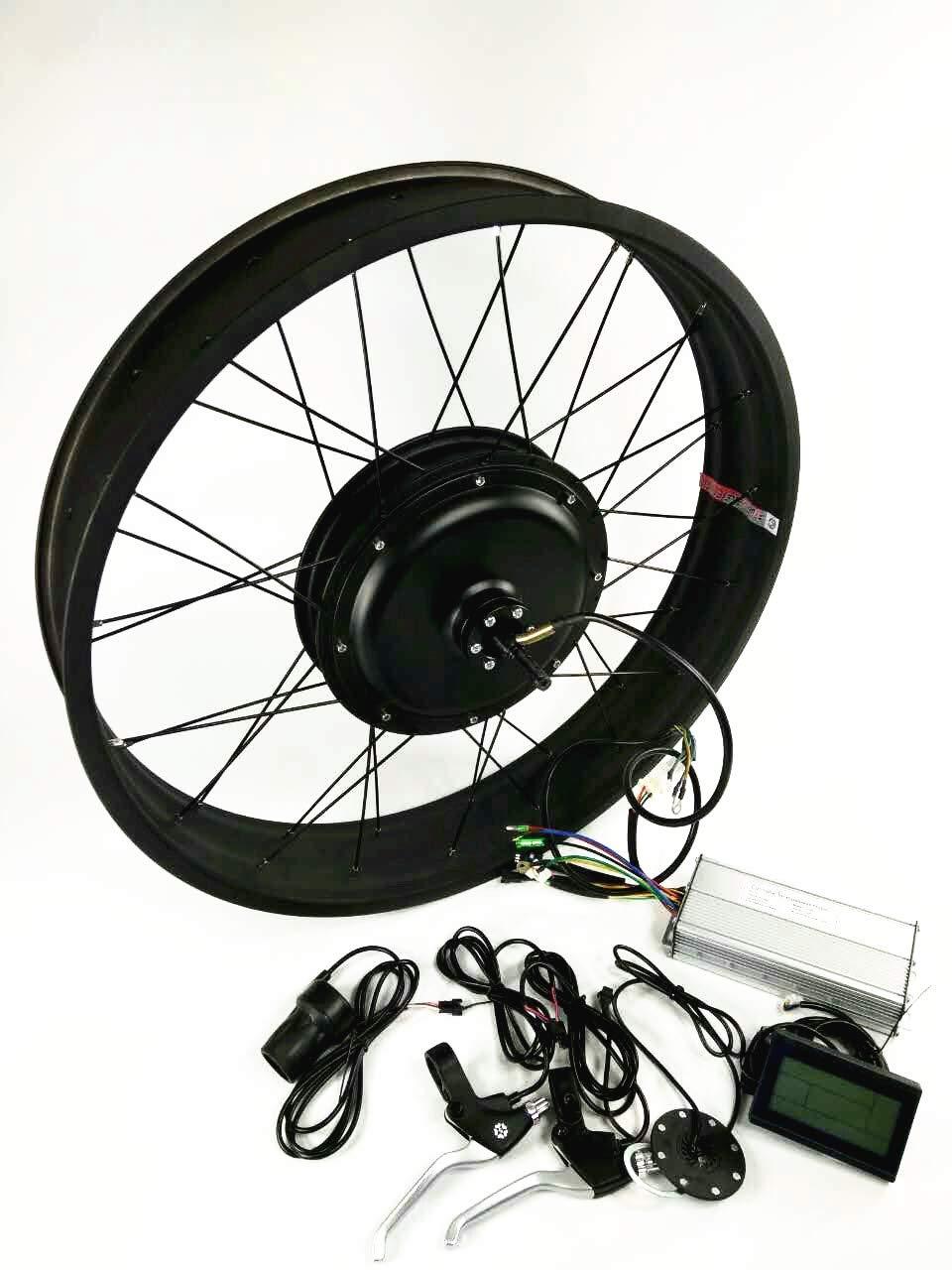

1500W Electric Bicycle Bike DIY Conversion Kits Included:

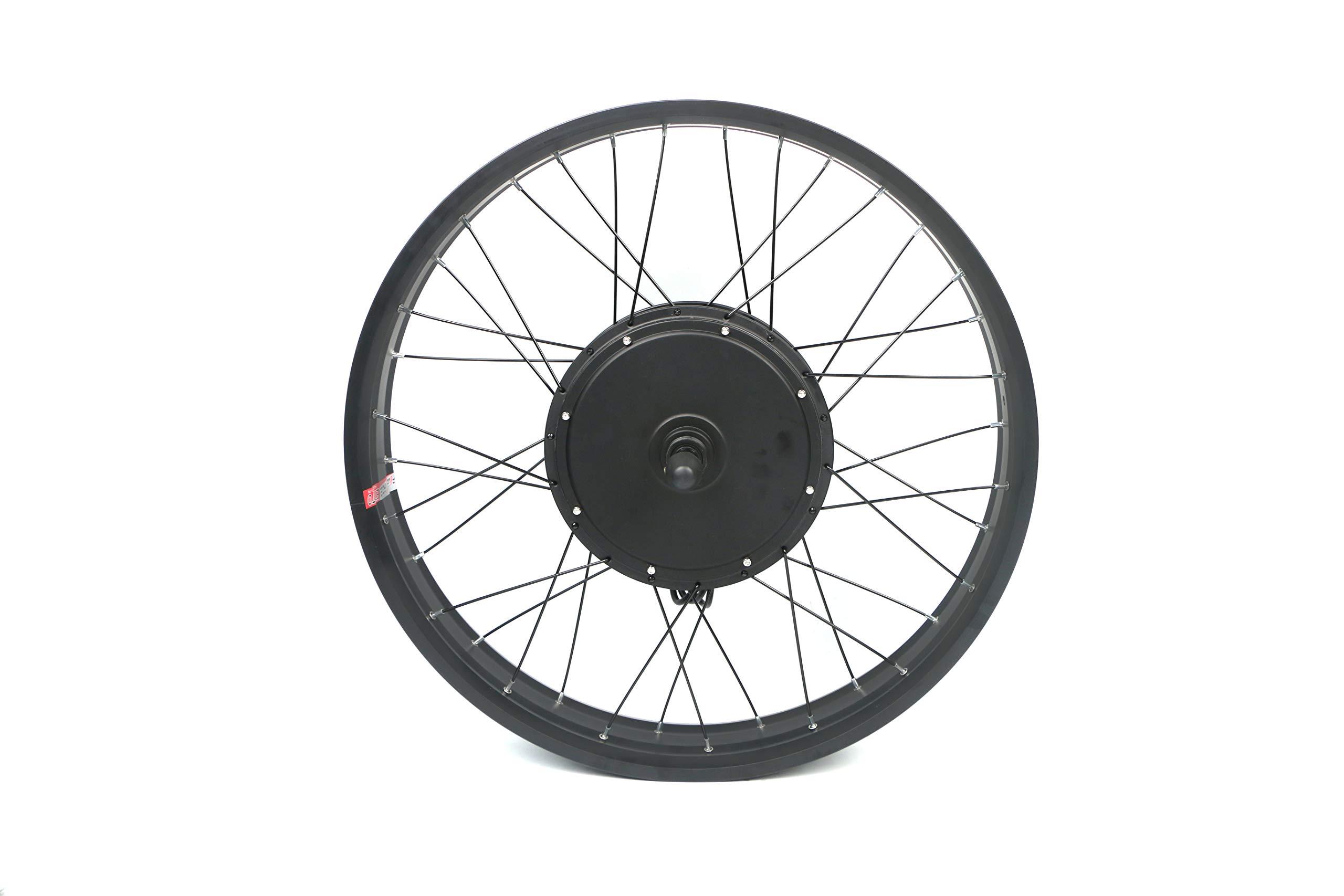

1. 1500W Fat Brushless Gearless Motorized 26*4.0 " Rear Wheel Motor (dropuout 170-175mm )

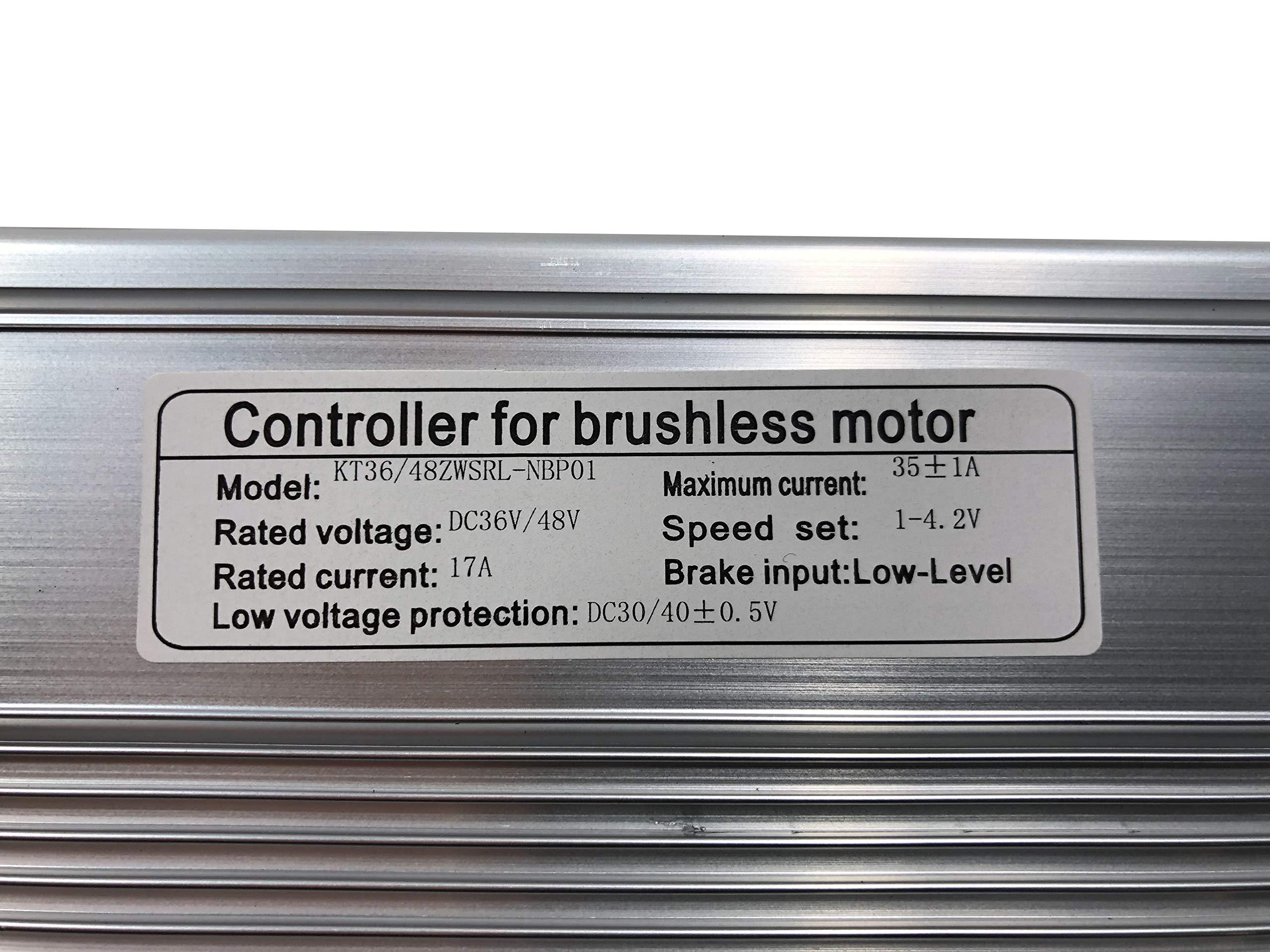

2. 48V 35A Kt Controller

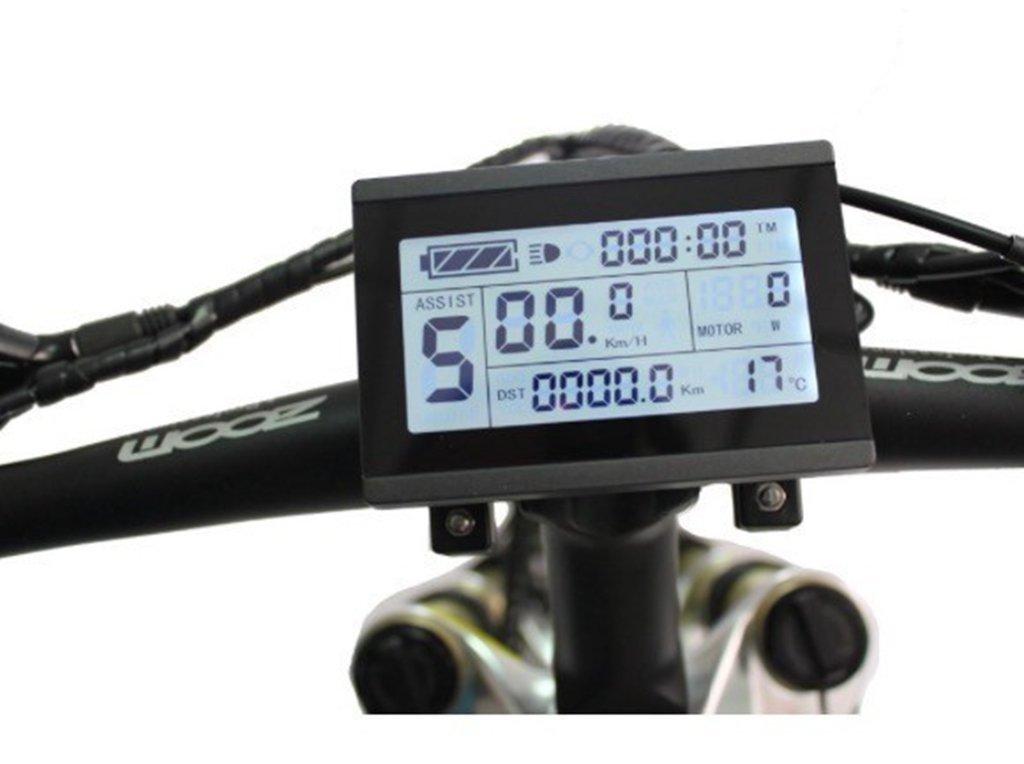

3. LCD3 display.
4. 1 pair of Top Quality Black Aluminum Alloy Brake Levers
5. thumb Throttle.
6. PAS 8 Magnets High Quality Pedal Assistant Sensor
7. 7-Speed Freewheel for rear motor
8. Book manual and ties
9.GOOD PACKAGE FOR EXPRESS
